В данной статье пойдет речь о том, как подключить ультразвуковой дальномер HC-SR04 к ATtiny2313 и отображать данные на ЖКИ-дисплее 16×1 на базе HD44780. Также сделал пример программы для отправки результата по UART. Для приёма я использовал Terminal 1.9b и преобразователь USB-UART на базе PL2303HX. Для проверки работоспособности программы и схемы я использовал Proteus 7. Проект в Atmel Studio 7 целиком вы сможете скачать по ссылке в конце статьи. При прошивке микроконтроллера ATtiny2313 не забудьте менять фьюзы: CKSEL3…0 = 0100 – Внутренний тактовый генератор — частота 8 МГц и поставить галочку (т.е. отключить) на SCKDIV8 – деление тактовой частоты на 8.
- 1 Схема подключения TB378 и HC-SR04 к ATtiny2313
- 2 Пример программы в Atmel Studio 7
- 3 Схема подключения LCD HD44780 и HC-SR04 к ATtiny2313
- 4 Пример программы в Atmel Studio 7
- 5 Скачать файлы
- 6 Купить HC-SR04 на AliExpress
- 7 Купить ATTINY2313A на Aliexpress
- 8 Купить LCD1602 HD44780 на Aliexpress
- 9 Похожие записи
Схема подключения TB378 и HC-SR04 к ATtiny2313
Для начала сделал программу для получения данных по UART.
Пример программы в Atmel Studio 7
main.c
#define F_CPU 8000000UL #define BAUD 9600 #define MYUBRR F_CPU/16/BAUD-1 #include <avr/io.h> #include <util/delay.h> #include <string.h> #include <stdlib.h> #include "uart.h" #include "hcsr04.h" inline void prepareText(char * text, int distance) { char textDistance[5]; itoa(distance, textDistance, 10); strcat(text, "D = "); strcat(text, textDistance); strcat(text, "mm"); } int main(void) { int distance; char text[17]; USARTInit(MYUBRR); while (1) { text[0] = '\0'; distance = getDistance(); prepareText(text, distance); USARTTransmitStringLn(text); _delay_ms(333); } }
Краткое описание
Вместо функции sprintf()
сделал собственную функцию для преобразования числа в строку, потому что sprintf()
жрёт больше половины флеш памяти контроллера.
inline void prepareText(char * text, int distance)
Функция prepareText преобразует целое число distance
(расстояние) в строку и добавляет строку в text
.
itoa(distance, textDistance, 10);
Функция itoa
преобразует целое число distance
в строку textDistance
в формате 10
.
strcat(text, textDistance);
Объединение строк. Функция добавляет textDistance
строки srcptr в конец строки text
.
Результат

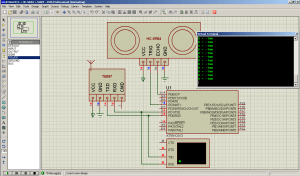

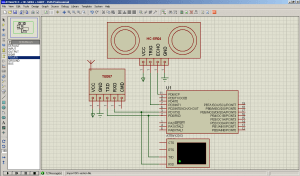

Так как в Протеус нету HC-SR04, я его просто нарисовал. На первой картинке результат в -1 означает что датчик HC-SR04 не подключён или Echo не отправил сигнал.

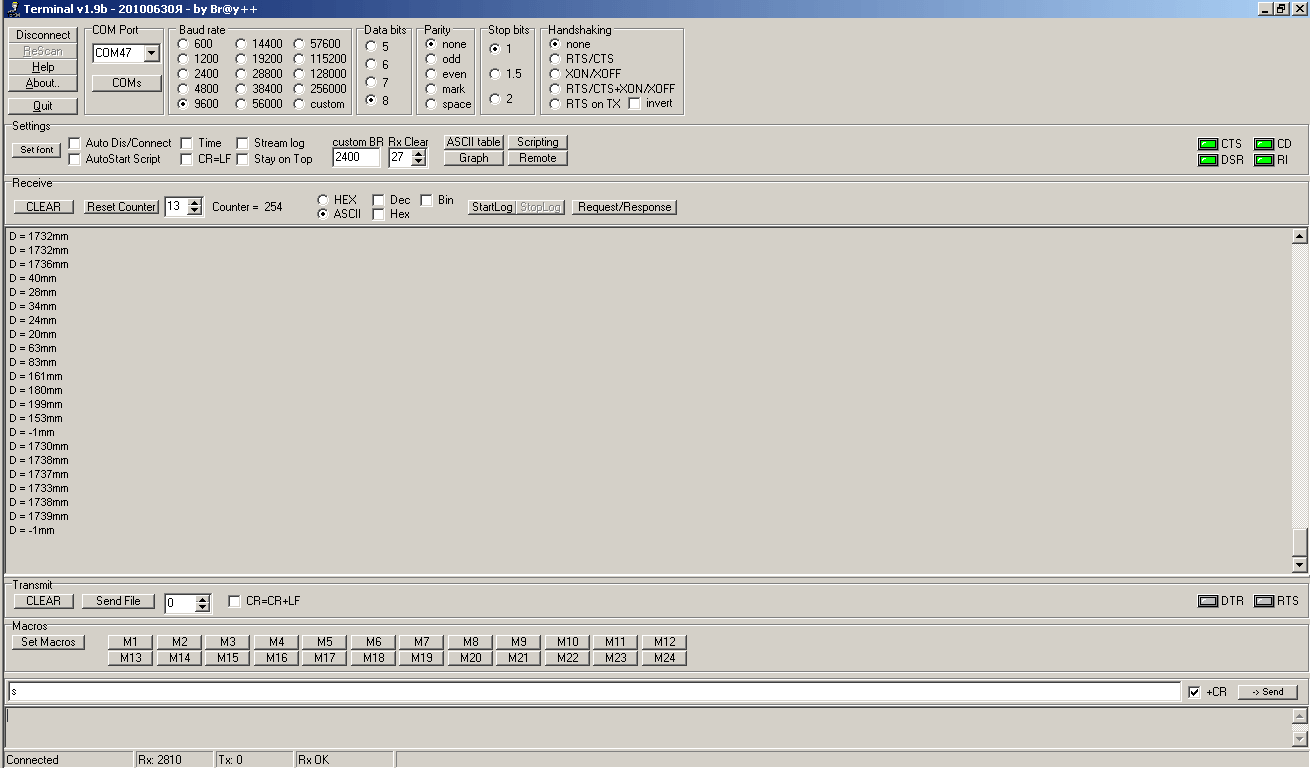

После прошивки реального ATtiny2313, подключил к компьютеру и вот результат.
Схема подключения LCD HD44780 и HC-SR04 к ATtiny2313
После того, как убедился, что датчик HC-SR04 и программа работают правильно, для вывода результата подключил однорядный ЖК на 16 символов — HD44780.
Пример программы в Atmel Studio 7
main.c
#define F_CPU 8000000UL #include <avr/io.h> #include <util/delay.h> #include <string.h> #include <stdlib.h> #include "hcsr04.h" #include "LCD.h" inline void prepareText(char * text, int distance) { char textDistance[5]; itoa(distance, textDistance, 10); strcat(text, "D="); strcat(text, textDistance); strcat(text, "mm"); } int main(void) { _delay_ms(100); lcdInit(); lcdClear(); lcdSetDisplay(LCD_DISPLAY_ON); lcdSetCursor(LCD_CURSOR_OFF); int distance; char text[17]; while (1) { text[0] = '\0'; distance = getDistance(); prepareText(text, distance); lcdClear(); lcdGotoXY(0, 0); lcdPuts(text); _delay_ms(333); } }
Результат

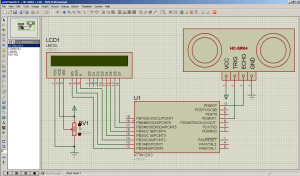

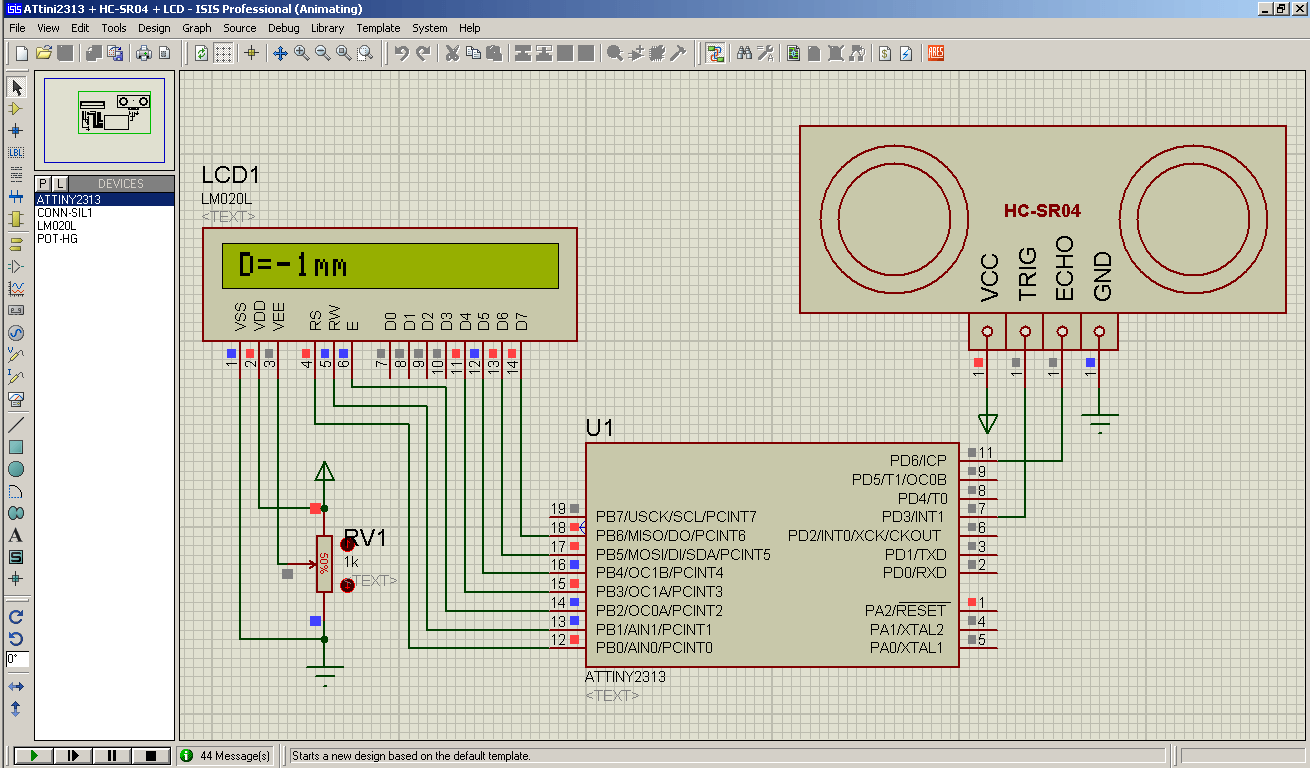

В Протеусе всё работает, текст отображается правильно.
Скачать файлы
ATtiny2313 + HC-SR04 + LCD — Atmel Studio 7 проект
ATtiny2313 + HC-SR04 + UART — ISIS Professional (Proteus) проект
ATtiny2313 + HC-SR04 + LCD — ISIS Professional (Proteus) проект
ATtiny2313 + HC-SR04 + UART — Atmel Studio 7 проект
ATtiny2313A даташит на Русском
ATtiny2313A datasheet (EN)
