Как подключить ультразвуковой датчик измерения расстояния HC-SR04 к ATmega16 и передать данные через USART/UART на компьютер
Очень часто нам нужно подключить датчик измерения расстояния HC-SR04 к ATmega16, Arduino или другому микроконтроллеру и отображать данные на экран или передать через USART/UART на наш компьютер.
В данной статье мы решим эти проблемы, а именно:
- подключим HC-SR04 к ATmega16;
- подключим радио модуль TB387 к ATmega16 или напрямую, или другой имеющийся радио модуль как HC-11/12 или FS1000A/XD-FST;
- напишем прошивку для ATmega16;
- проверим работоспособность.
Схема подключения модуля TB387 и датчика движения HC-SR04 к ATmega16
Пример программы в Atmel Studio 7
uart.h
#ifndef UART_H_ #define UART_H_ void USARTInit(unsigned int); void USARTTransmitChar(char); void USARTTransmitString(char*); void USARTTransmitStringLn(char*); char USARTReceiveChar(void); #endif /* UART_H_ */
uart.c
#include <avr/io.h> #include "uart.h" void USARTInit(unsigned int ubrr) { // нормальный асинхронный двунаправленный режим работы // UBRR = f / (16 * band) // Установка скорости UBRRH = (unsigned char)(ubrr>>8); UBRRL = (unsigned char)(ubrr); // RXC - завершение приёма // |TXC - завершение передачи // ||UDRE - отсутствие данных для отправки // |||FE - ошибка кадра // ||||DOR - ошибка переполнение буфера // |||||PE - ошибка чётности // ||||||U2X - Двойная скорость // |||||||MPCM - Многопроцессорный режим // |||||||| // 76543210 UCSRA = 0; // RXCIE - прерывание при приёме данных // |TXCIE - прерывание при завершение передачи // ||UDRIE - прерывание отсутствие данных для отправки // |||RXEN - разрешение приёма // ||||TXEN - разрешение передачи // |||||UCSZ2 - UCSZ0:2 размер кадра данных // ||||||RXB8 - 9 бит принятых данных // |||||||TXB8 - 9 бит переданных данных // |||||||| // 76543210 // разрешен приём и передача данных по UART UCSRB = 1<<RXEN | 1<<TXEN; // URSEL - всегда 1 // |UMSEL - режим: 1-синхронный 0-асинхронный // ||UPM1 - UPM0: 1 чётность // |||UPM0 - UPM0: 1 чётность // ||||USBS - стоп биты: 0-1, 1-2 // |||||UCSZ1 - UCSZ0: 2 размер кадра данных // ||||||UCSZ0 - UCSZ0: 2 размер кадра данных // |||||||UCPOL - в синхронном режиме - тактирование // |||||||| // 76543210 // 8-битовая посылка, 2 стоп бита UCSRC = 1<<URSEL | 1<<USBS | 1<<UCSZ0 | 1<<UCSZ1; } // Отправка байта void USARTTransmitChar(char c) { // Устанавливается, когда регистр свободен while(!( UCSRA & (1<<UDRE))); UDR = c; } // Отправка строки void USARTTransmitString(char str[]) { register char i = 0; while(str[i]) { USARTTransmitChar(str[i++]); } } // Отправка строки void USARTTransmitStringLn(char str[]) { USARTTransmitString(str); USARTTransmitChar((char)13); USARTTransmitChar((char)10); } // Получение байта char USARTReceiveChar(void) { // Устанавливается, когда регистр свободен while(!(UCSRA & (1<<RXC))); return UDR; }
hcsr04.h
#ifndef HCSR04_H_ #define HCSR04_H_ void initHCSR04(); void stopHCSR04(); void trigHCSR04(); void waitHCSR04(); uint32_t getDistance(); #endif /* HCSR04_H_ */
hcsr04.c
// HC-SR04 к ATmega16 #define F_CPU 11059200UL // Clock Speed #define TRIG_DDR DDRD #define TRIG_PORT PORTD #define TRIG_PIN PIND3 #include <avr/io.h> #include <util/delay.h> #include <avr/interrupt.h> #include <stdbool.h> #include "hcsr04.h" uint16_t rising, falling; uint32_t counts; uint32_t dist; bool star = false; // Режим захвата ISR(TIMER1_CAPT_vect) { // ICES1 = 1 // фронт - положительный срез if (TCCR1B & (1<<ICES1)) { // Сохраняем текущее значение счетчика rising = ICR1; // В следующий раз обнаружить спад (отрицательный срез) TCCR1B &= ~(1<<ICES1); // Просто код ошибки, что измерение не произошло dist = -2; } // ICES1 = 0 // спад - отрицательный срез else { // Сохраняем текущее значение счетчика falling = ICR1; // считаем число тактов counts = falling - rising; // определяем растояние в миллиметрах dist = (counts * 100) / 813; // уведомляем функцию waitHCSR04() что можно отправить // результат заказчику т.е. растояние определено star = false; } } // обработчик прерывания по совпадению значения таймера со значением регистра OCR1A // OCR1A = 0xFFFF ISR(TIMER1_COMPA_vect) { // уведомляем функцию waitHCSR04() что можно отправить // результат заказчику т.е. растояние не определено // HC-SR04 не получил обратный сигнал т.е. растояние // слишком большая, сенсор не подключён или сигнал слишком слабый dist = -1; star = false; } // инициализация HCSR04 void initHCSR04() { // инициализация ножки TRIG как выход TRIG_DDR |= 1<<TRIG_PIN; rising = falling = counts = dist = 0; // инициализация таймера 1 TIMER1 // CS12,CS11,CS10: Clock Select. Эти 3 бита задают источник тактового сигнала для счетчика. // 0 1 0 : F_CPU/8 (с выхода делителя) // ICNC1: Установка этого бита в лог. 1 активирует входной подавитель шума // WGM13,WGM12,WGM11,WGM10: // 0 1 0 0 : режим CTC, максимальное значение OCR1A = 0xFFFF TCCR1B |= (1<<ICNC1) | (1<<CS11) | (1<<WGM12); // TICIE1 = 1: разрешено прерывание захвата таймера/счетчика 1 // OCIE1A = 1: разрешено прерывание по совпадению регистра A с состоянием таймера/счетчика1 TIMSK |= (1<<TICIE1) | (1<<OCIE1A); // ICES1 = 1: захват входа ICR1 по нарастающему фронту (положительный срез). TCCR1B |= (1<<ICES1); // максимальное значение счетчика OCR1A = 0xFFFF; // активируем прерывания sei(); } // отключаем режим захвата void stopHCSR04() { TRIG_DDR &= ~(1<<TRIG_PIN); // TIMER1 INIT TCCR1B &= ((1<<ICNC1) | (1<<CS11) | (1<<WGM12)); TIMSK &= ((1<<TICIE1) | (1<<OCIE1A)); TCCR1B &= ((1<<ICES1)); OCR1A = 0; } // Генерируем импульс на 12us void trigHCSR04() { TRIG_PORT ^= (1<<TRIG_PIN); _delay_us(12); TRIG_PORT ^= (1<<TRIG_PIN); } // ждём пока star равно true т.е. завершение измерения void waitHCSR04() { star = true; while(star) { _delay_us(1); } } uint32_t getDistance() { // Инициализируем таймер (HCSR04) initHCSR04(); // Генерируем импульс на 12us trigHCSR04(); // Ждем, пока растояние не определено waitHCSR04(); // Останавливаем таймер stopHCSR04(); // Возвращяем результат return dist; }
main.c
#define F_CPU 11059200UL // Clock Speed #define BAUD 9600 #define MYUBRR F_CPU/16/BAUD-1 #include <avr/io.h> #include <util/delay.h> #include <avr/interrupt.h> #include <stdio.h> #include "uart.h" #include "hcsr04.h" int main(void) { uint32_t d; char str[20]; USARTInit(MYUBRR); while (1) { d = getDistance(); sprintf(str, "Distance: %dmm", d); USARTTransmitStringLn(str); _delay_ms(1000); } }

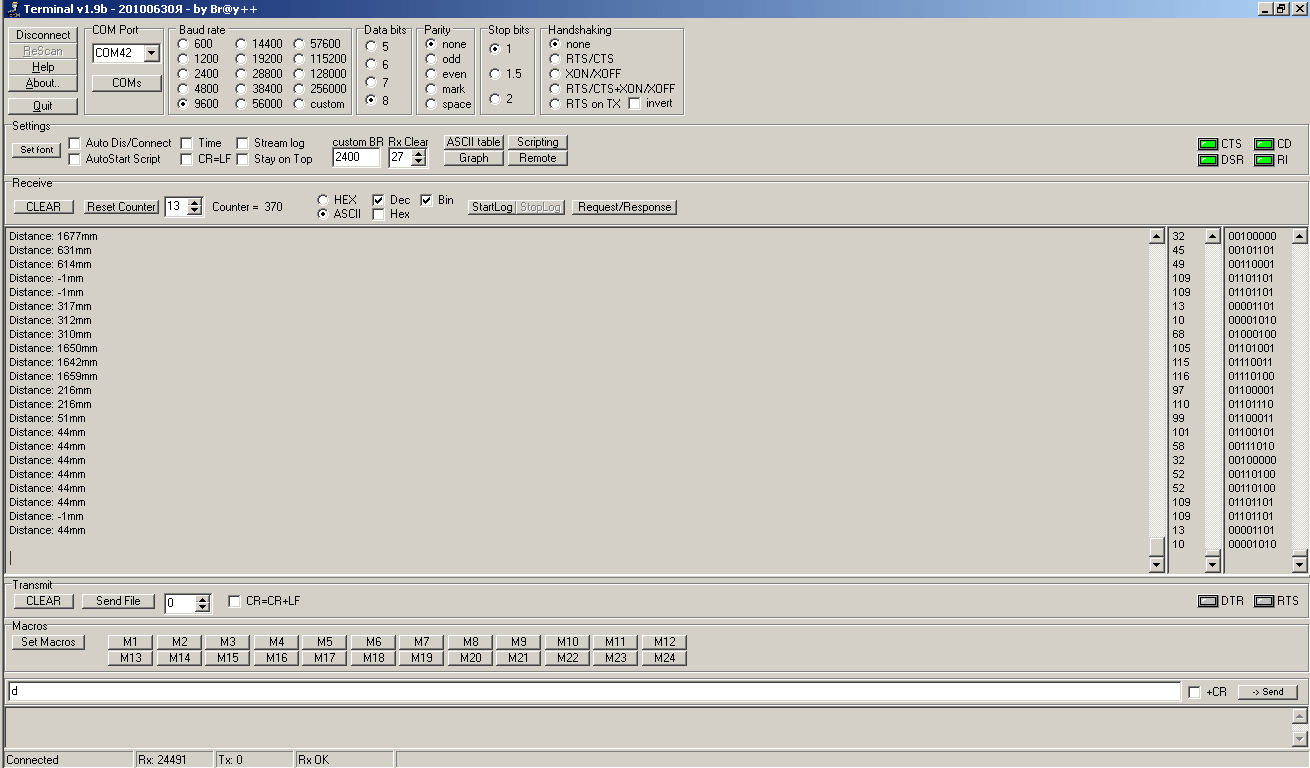

Результат
Скачать
Terminal 1.9b — работаем с COM-портом
datasheet ATMEGA16.pdf
Проект в Atmel Studio 7 HC-SR04+UART+ATmega16
